Dust Collection Equipment
-

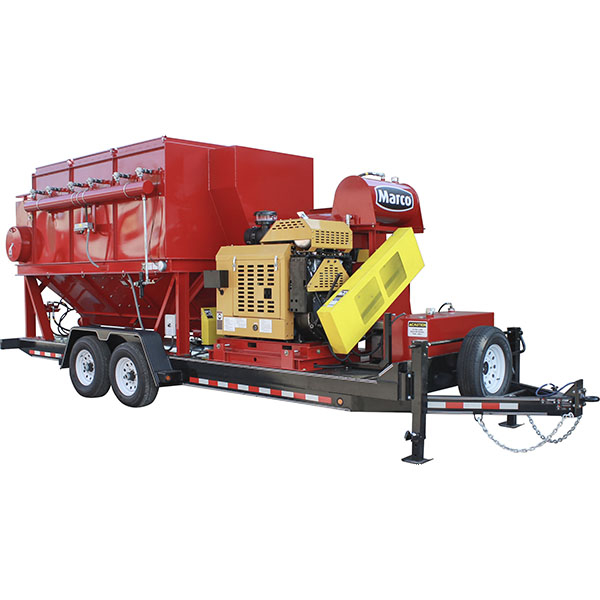

- 18,000 CFM Dust Collector
- 74 Hp, Tier 4 diesel engine
- 24 filters required (included with this part number)
- Four (4) 20" duct hose connections
- 55 gallon fuel tank
- 11,680 empty weight
- 23'9" length x 8'6" width x 10'4" height
-

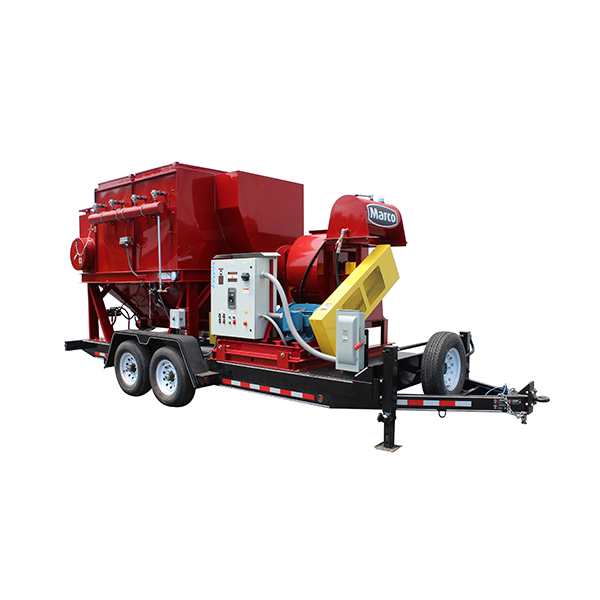

- 18,000 CFM Dust Collector
- 50 Hp 3-Phase Motor (fan)
- 10 Hp 3-Phase Motor (hydraulics)
- 24 filters required (included with this part number)
- Four (4) 20" duct hose connections
- 11,680 empty weight
- 21'10" length x 8'6" width x 10'4" height
-
- 28,000 CFM Dust Collector
- 75 Hp electric motor
- 36 filters required (included with this part number)
- Four (4) 20" duct hose connections
- 12,500 lbs empty weight
- 27'10" length x 8'6" width x 10'4" height
-

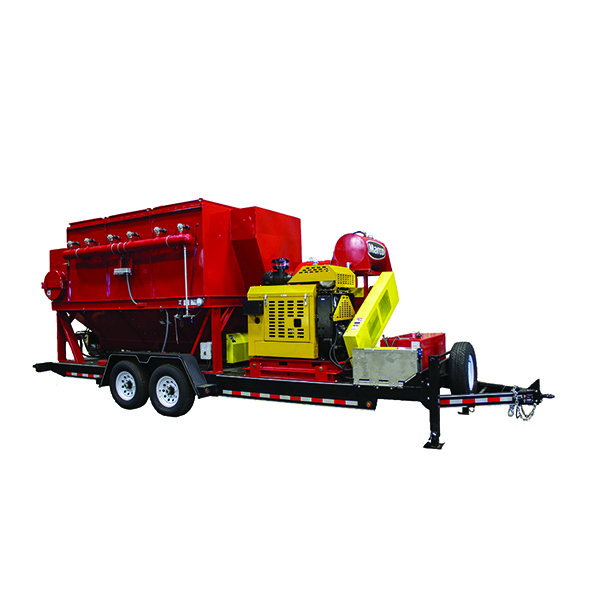

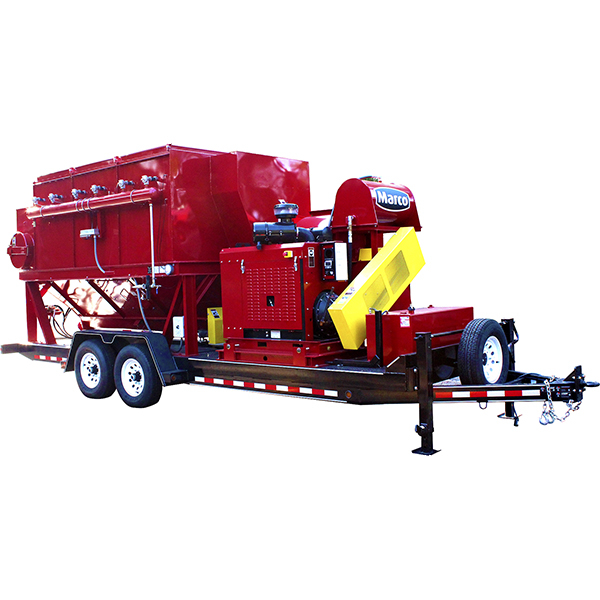

- 28,000 CFM Dust Collector
- 120 Hp, Tier 4 diesel engine
- 36 filters required (included with this part number)
- Four (4) 20" duct hose connections
- 80 gallon fuel tank
- 27'10" length x 8'6" width x 10'4" height
-

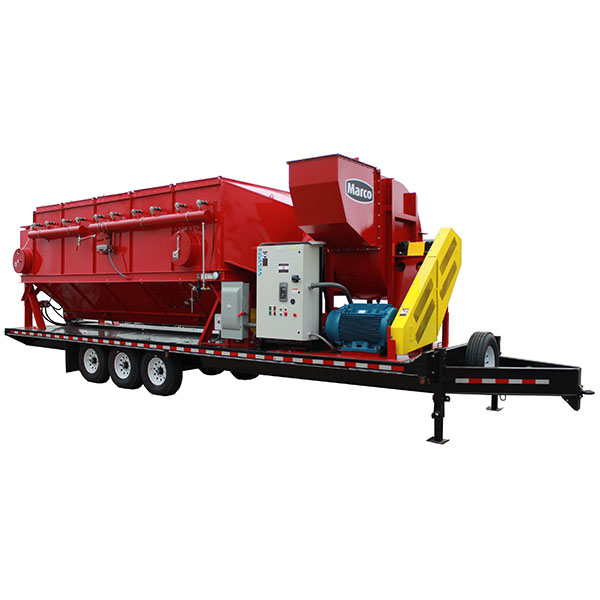

- 50,000 CFM Dust Collector
- 36,880 - 50,490 CFM capacity
- 56 filters required (included with this part number)
- Six 20" duct hose connections
- 150 Hp 3-phase electric fan
- 10 Hp 3-phase hydraulic motor
- Requires 24 CFM compressed air @ 90 PSI
- 19,900 empty weight, 3980 tongue weight
- 36'3" length x 8'6" width x 11'2" height
-

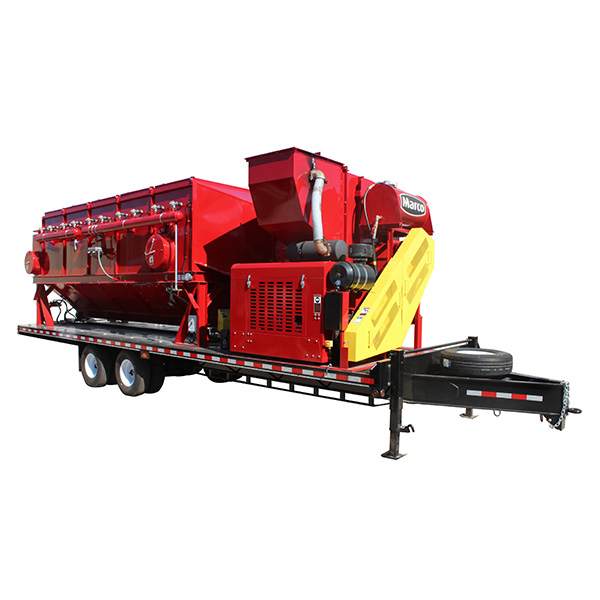

- 50,000 CFM Dust Collector
- 36,880 - 50,490 CFM capacity
- 56 filters required (included with this part number)
- Six 20" duct hose connections
- Backward inclined, spark resisting fan
- 174 Hp, Tier 4 diesel engine
- Requires 24 CFM @ 90 PSI
- 19,900 empty weight, 3980 tongue weight
- 35'8" length x 8'6" width x 11' height
-
- 8,000 CFM Dust Collector
- 460-Volt Electric
- 6 filters required (included with this part number)
- One 16" duct hose connection
- Hopper: 1,233 weight
- Hopper: 4' x 4' x 7'5"
- Fan Skid: 1,054 weight
- Fan Skid: 4' x 4' x 3'5"
-

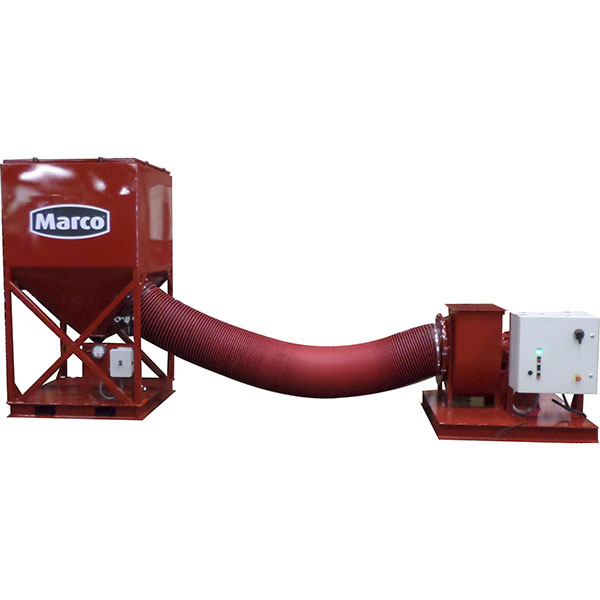

- 8,000 CFM Dust Collector
- 575-Volt Electric
- 6 filters required (included with this part number)
- One 16" duct hose connection
- Hopper: 1,233 weight
- Hopper: 4' x 4' x 7'5"
- Fan Skid: 1,054 weight
- Fan Skid: 4' x 4' x 3'5"
-

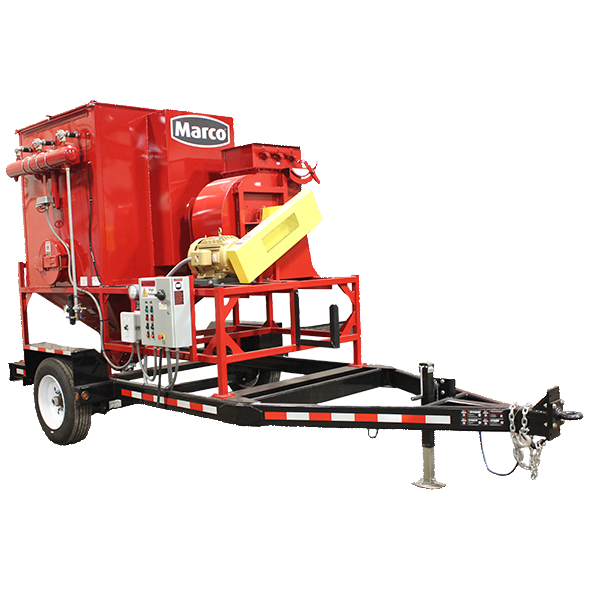

- 8,000 CFM Dust Collector
- 25 Hp Electric, 3-Phase
- 9 filters required (included with this part number)
- Two (2) 16" duct hose connections
- 5,509 empty weight
- 19'8" length x 8' width x 9'11" height
-

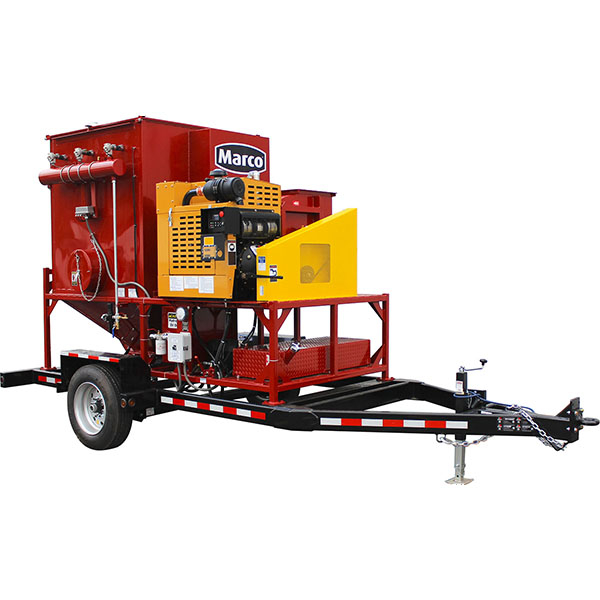

- 8,000 CFM Dust Collector
- 49 Hp, Tier 4 diesel engine
- 9 filters required (included with this part number)
- Two (2) 20" duct hose connections
- 32 gallon fuel tank
- 6,060 empty weight
- 19'8" length x 8' width x 10'4" height
